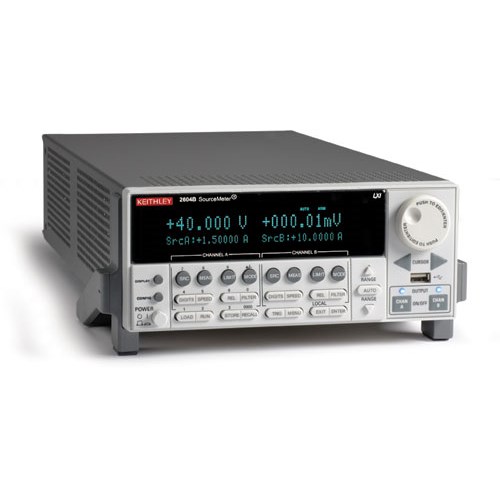

Keithley 2604B SourceMeter SMU Instrument, 2-Channel Bench-Top Version

Keithley 2604B SourceMeter SMU Instrument, 2-Channel Bench-Top Version

Price:

$7,510.00

SKU:

2604B

Brand:

Keithley

Weight:

12.00 LBS

Shipping:

Calculated at checkout

Product Description

The Model 2604B SourceMeter® SMU instrument is a new dual channel SMU instrument with best-in-class value and performance. It's tightly integrated four-quadrant design that allows it to simultaneously source and measure both voltage and current to boost productivity in applications ranging from R&D to bench-top applications. The wide range of 3A DC, 10A pulse, 40V output makes the Model 2604B suitable for testing a wide range of higher current devices, materials, components, and sub-assemblies.

Read the Keithley 2600B System SourceMeter® SMU Instruments Data Sheet

Product Features

Dual channel model with 80W power output (40W per channel)
4 quadrant source/measure with 6½-digit resolution
Current Max/Min: 3A DC, 10A pulse/100fA
Voltage Max/Min: 40V/ 100nV
Built-in "Plug & Play" Java-Based I-V characterization and test software
TSP® (Test Script Processing) technology embeds complete test programs inside the instruments
TSP-Link® expansion technology for multi-channel parallel test
Software emulation for Keithley's Model 2400 SourceMeter SMU Instrument
Large, easy-to-read, dual line display
USB 2.0 connectivity

Specifications:

Applications:	R&D, Bench-top Applications
Channels:	2
Includes:	2600-AL G-2: Low Noise Triax Cable with Alligator Clips, 2m (6.6 ft.), 2600-Kit: Screw Terminal Connector Kit, 2600B-800A: Series 2400 Emulation Script for Series 2600B (supplied on USB memory stick), 7709-308A: Digital I/O Connector, CA-180-3A: TSP-Link/Ethernet Cable (two per unit) TSP Express Software Tool (embedded) Test Script Builder Software and LabVIEW Driver (supplied on CD), Operators and Programming Manuals.
