Product Description

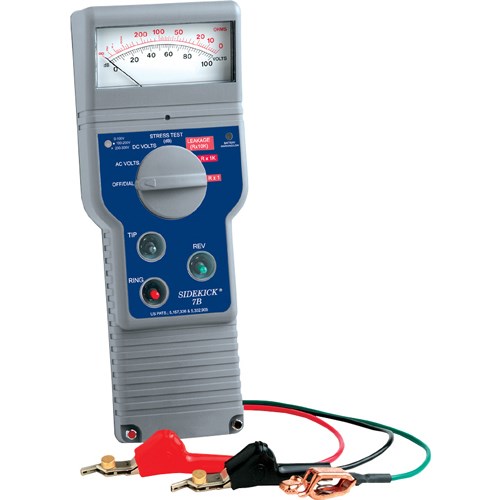

The Sidekick 7B quickly and accurately uncovers intermittent faults that other test sets cannot detect. It can be used by technicians to troubleshoot inside wiring and outside plant cabling, and from closures to connecting blocks. It provides the standard features required by technicians such as AC/DC VOM and kick meter they have come to rely upon. Additionally the Sidekick 7B provides the technician, in a hand-held and easy to use package, the ability to determine the stressed noise susceptibility of dry or working pairs. It reads the audible noise produced on a faulted pair that is stressed by a 90dBm longitudinal excitation. The Stress Test determines the capacitive and series resistance balance characteristics of a twisted pair at any point along the line. It is capable of identifying DC resistive or capacitive imbalances undetected by other subscriber loop tests. The Stress Test is highly effective in identifying imbalances produced by series resistance opens (high joints.) A Leakage Test detects intermittent resistance faults that do not appear under normal VOM tests. When a faulted pair is taken out of service, galvanic action forms an insulative oxide layer over the faults. When returned to service, such pairs develop noisy static in a relatively short time. The Leakage Test uses 135V to punch through such oxide layers and reveal the fault. Sidekick 7B operates on four included AA batteries. It comes with a soft carry case, and it measures 10.75 x 4.25 x 2.5" @ 2lbs
