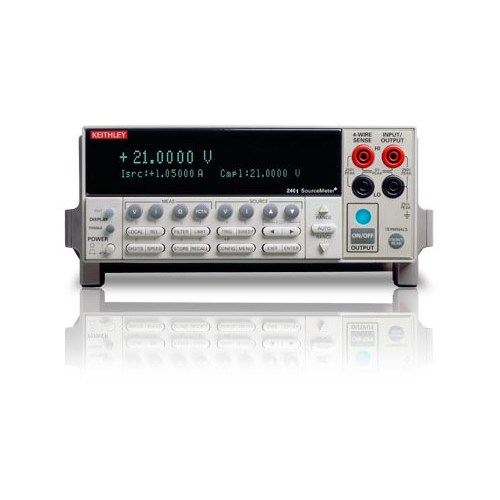

Keithley 2400 General Purpose SourceMeter

Price:

Call for pricing

SKU:

2400

Brand:

Keithley

Weight:

10.00 LBS

Product Description

Scientists, researchers, and engineers worldwide use Keithley's industry-leading SourceMeter® Source Measurement Unit (SMU) instruments for their unique combination of dynamic signal range, speed, and precision. Keithley's Series 2400 Source Measure Unit (SMU) Instruments are designed specifically for test applications that demand tightly coupled sourcing and measurement. All SourceMeter models provide precision voltage and current sourcing as well as measurement capabilities. Each SourceMeter SMU instrument is both a highly stable DC power source and a true instrument-grade 6½-digit multimeter. The power source characteristics include low noise, precision, and readback. The multimeter capabilities include high repeatability and low noise. The result is a compact, single-channel, DC parametric tester. In operation, these instruments can act as a voltage source, a current source, a voltage meter, a current meter, and an ohmmeter. The broad purpose Model 2400 (200V, 1A, 20W) additionally includes 200V source/measure capability, and a programmable DIO port for automation/handler/prober control.

Product Features

Five instruments in one (I-V Source, I-V-R Measure)
Source and sink (4-quadrant) operation
0.012% basic V-measure accuracy with 6½-digit resolution
1700 readings/second at 4½ digits via GPIB
2 and 4-wire remote V-source and V-measure sensing, 6-wire ohms mode
Standard SCPI GPIB, RS-232, and Keithley Trigger Link interfaces
Keithley LabTracer 2.0 I-V curve tracing application software (download)

Specifications:

Computer Interface:	GPIB, RS-232, Digital I/O, Trigger Link Trigger Bus
Connector Type:	Banana (front /rear)
Current:	Max 1.05A (meas.) Min. 1pA (meas.)
Power:	22W Continuous
Voltage:	Max. 210V (meas.) Min. 100nV (meas.)
