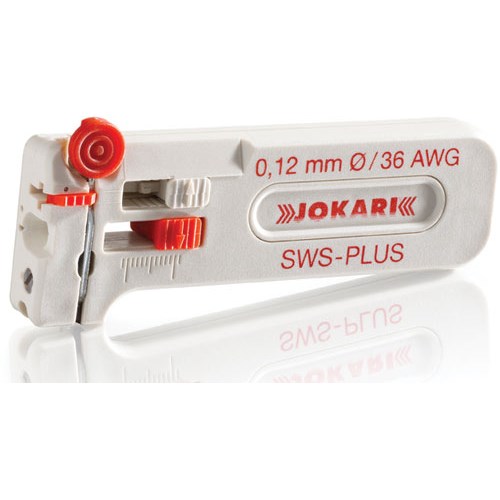

Jokari 40015 SWS Plus Wire Stripper for 36 AWG

Home
Tools
Hand Tools
Jokari 40015 SWS Plus Wire Stripper for 36 AWG

Jokari 40015 SWS Plus Wire Stripper for 36 AWG

Price:

Call for pricing

SKU:

40015

Brand:

Jokari

Weight:

0.23 LBS

Minimum Purchase:

1 unit(s)

Product Description

SWS Series is non-adjustable, each tool is specific to it's 1 gauge size. The SWS-PLUS series covers the complete capacity range from 0,12 to 1,0 mm Ø (AWG 36 - 18), but with their fixed stripping knives each tool can be used for one diameter only. This increases protection against wire da- mages in series production facilities

Click Here For Product Details

Product Features

Strip diameter is 36AWG
Strip length is adjusable up to .59"
Strips tough insulation like Kynar, Tefzel or Mylar
TsV/GS-approved

Specifications:

Overall Length:	4"
Application:	For Extremely Fine Wires
Use:	A -Adjust length stop (for longer stripping sections bypass possible) <br /> B- Open catch, close after use <br /> C - Level blade self opening <br /> D Insert wire for automatic cen- tering. Close blade and tear the tool from wire
