This thermal wire stripper is for wires from 18-36AWG and can remove most types of insulation. The digital controller allows you to set the stripper at a low setting for PVC insulation or a higher setting for Kynar, or Teflon insulation. Tool will dial from 0-99 but it is recommended you remain below 56 to prolong the life of the blades. Comes complete and ready to go out of the box with power supply handpiece, holder and blade. The included straight blade is the most popular, it will handle very fine wires with tough insulation. Replacement blade is G3-1601.
Product Features
Digital power control from 5% to 100% (in increments of 5%)
Locking process control allows a set max power limit or full lock with no adjustment allowed
3-digit password security eliminates the need for a key card
Extra long, flexible cord for a long reach
Ultra-slim ergonomic handpiece
Knife blade designed for ultra-thick wires or trimming expando or other wire harness braiding
Easy insertion and removal of knife blade
Optional extension cord (B3659) allows a maximum reach of 2.5 m (that's 8.2 feet!)
New holder design with safety protective cover
FOD tray mitigates debris on the work bench
Auto Power Off
Sleep mode functionality
ESD Safe
Specifications:
Includes:

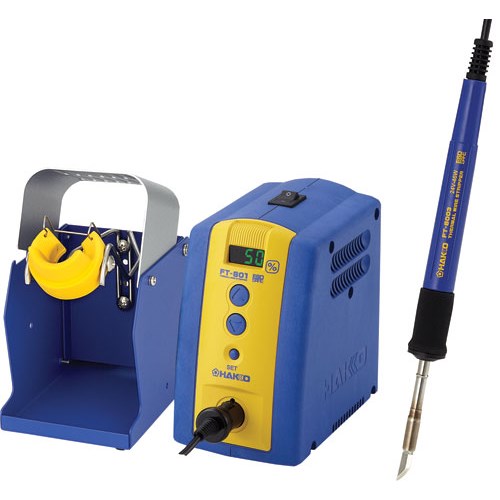

FT801 Station, and FT8003-01 Conversion Kit. Converstion Kit contains, FT-8003 Handpiece, G3 Blade, Holder, Connecting Cable and Blade Removal Tool.
