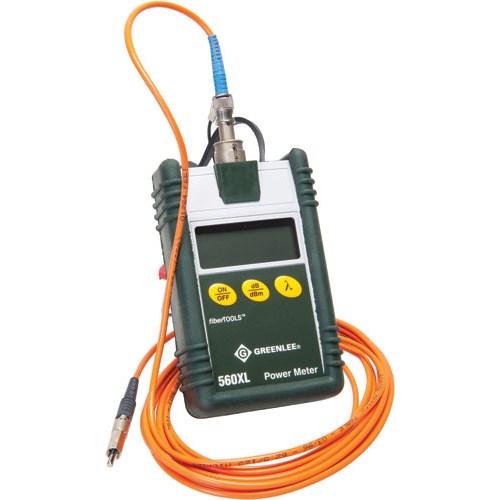

Don’t confuse the small size of the Greenlee 560XL-EMI with its ability to provide powerful results. The 560XL-EMI Optical Power Meter is the perfect tool for installing and testing fiber optic cabling. The 560XL-EMI can be used to measure optical power, or can be used in conjunction with a LED or laser source for insertion loss testing on multi- and single-mode fiber optic cabling. The 560XL-EMI measures optical power at 850nm, 1300nm, 1310nm, and 1550nm. It can store reference levels for faster, more efficient testing*. The 560XL-EMI also uses a Snap On Connector (SOC) interface for use with FC, SC, ST, and many other available connectors. Uses two AA batteries.
Product Features
Easy to use - three buttons control all functions
Rugged, splash-proof design
Engineered for use in areas with high electrical interference
Stores and recalls reference power levels for faster, more efficient measurements
Enhanced EMI performance: MIL-STD-461E, Method RS103, tested to 190 V/m
Loss measurements in dB; power measurements in dBm
