Desco 19219 Ground Hub Monitor

Desco 19219 Ground Hub Monitor

Price:

$110.14

SKU:

19219

Brand:

Desco

Weight:

0.35 LBS

Shipping:

Calculated at checkout

Product Description

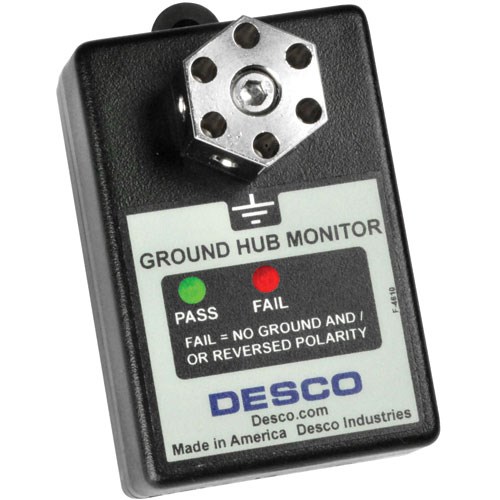

This monitor confirms the integrity of the resistance path from the common ground point to electrical ground. It is designed in accordance with ESD TR 12-01 to "monitoring equipment ground connections." When the monitor is plugged into an AC outlet, the green LED illuminates when both the outlet’s wiring is correct and the path to equipment ground via the equipment grounding conductor is intact. The monitor provides 12 verified ground points when in PASS condition. Red LED illuminates when either the outlet’s wiring is incorrect or the path to equipment ground is defective. Use the ground hub monitor to fulfill the ANSI/ESD S6.1 section 6.3.1 requirement. The hot, neutral and equipment grounding conductor shall be verified to be in the proper wiring orientation in accordance with the National Electric Code (ANSIINFPA-70).

Click here to download the AC Outlet and Ground Hub Continuous Monitor TECHNICAL DOCUMENT.

Product Features

Monitors AC outlet's wiring and path to earth ground
LEDs provide a visual indication that outlet is properly wired for grounding purposes of an in an ESD control plan
Alarms activate instantly when a failure occurs, alerting user and supervisor of a problem
Six banana jacks and six screws for #8 Ring Terminals
Provides numerous groundable points for wrist straps, mats, carts, tools, and other items
May also be daisy-chained to other grounding hubs
Certificate of calibration
