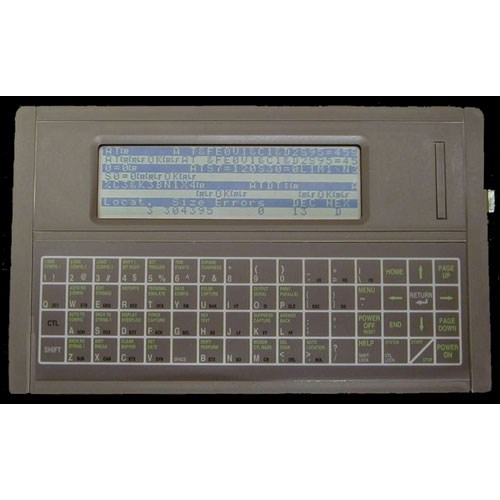

DLM-400 Benedict DLM400 Serial Protocol Analyzer

Price:

Call for pricing

SKU:

DLM-400

Weight:

1.00 LBS

Minimum Purchase:

1 unit(s)

Product Description

The DLM400 package includes all you need to begin monitoring and testing: A 2 compartment carrying case, wall transformer, batteries, 102 LED Break out Box (BOB100), 9 pin to 25 pin adapters, manual plus quick start instructions.

For a user guide Click here

Specifications:

Display:	8 line by 30/40 character super twist Liquid Crystal Display
Interface:	RS422, RS232, RS423, RS485 Menu selectable. Voltage Menu Selectable 5 volts or 8 volts
Power Source:	9-volt battery ( 9 hours with alkaline) or by supplied external transformer
Size:	9.25 x 5.50 x 1.37"
Trigger:	Triggers can be set to start or stop data capture on user-defined strings of up to 80 bytes or on interface signal pattern. Start triggers can be automatically reset after occurrence of stop trigger by DLM400 to provide "snapshots" of subsets of the data stream
