Carpenter Manufacturing M27F-S Rotary Collect Magnet Wire Stripper

Carpenter Manufacturing M27F-S Rotary Collect Magnet Wire Stripper

Price:

Call for pricing

SKU:

M27F-S

Weight:

1.00 LBS

Minimum Purchase:

1 unit(s)

Product Description

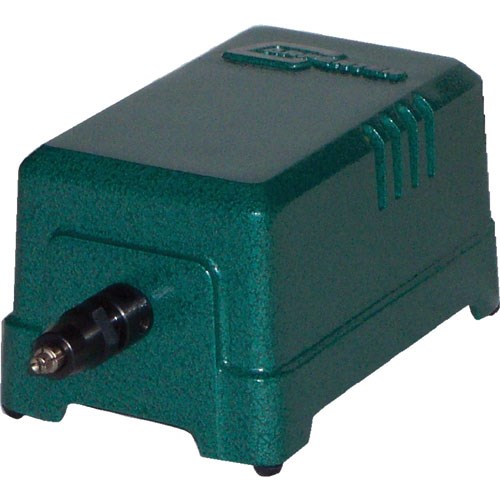

The Model 27F is designed to strip Magnet Wire, Coils and Resistor Leads to within .015”/.38mm (depending on insert style) of the component body. The rotating slotted Stripping Insert removes the Film Insulation leaving a clean strip with a square shoulder. Strip lengths with the Stop Rod installed are up to .625" (16mm) or with the Stop Rod removed up to 2.87" (72mm). Our unique Stripping Inserts are easily changed for various wire gauges and are available in Hardened Steel or Carbide. With the Optional P/N 1939D Flexible Shaft Assembly the Model 27F can be converted from a bench top machine to a more portable unit able to process leads on Heavy Coils. The Model 27F comes Standard with a durable Powder Coat Finish and 1 Year Limited Warranty.

Click Here For Product Manual
