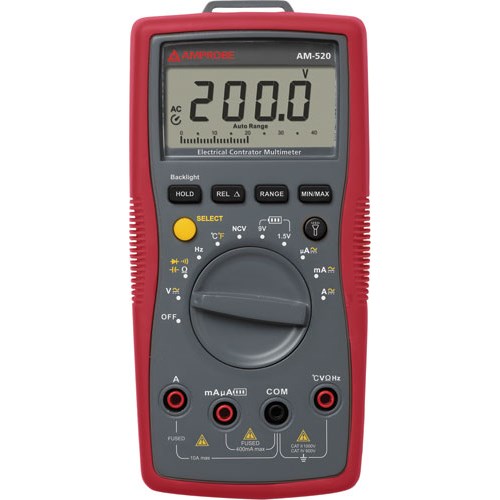

Amprobe AM-520 HVAC Digital Multimeter

Home
Test Equipment
Meters
Amprobe AM-520 HVAC Digital Multimeter

Amprobe AM-520 HVAC Digital Multimeter

Price:

Call for pricing

SKU:

AM-520

Brand:

Amprobe

Weight:

1.88 LBS

Product Description

Designed for the HVAC professional, the AM-520 HVAC Digital Multimeter is complete with key functions such as temperature, micro amps used for flame sensor troubleshooting and capacitance to check motor start-up capacitors. The AM-520 measures a complete range of electrical parameters and features a built-in flashlight, a “third hand” probe holder and VolTect™ non-contact voltage detection.

Product Features

Audible continuity
Data hold
Max/min memory
Relative zero mode
Built-in flashlight
Auto and manual-ranging
Auto power off
Low battery warning
Velcro strap to hang a meter
Safety rated: CAT III 600V

Specifications:

AC Current:	400.0/4000 µA 40.00/400.0 mA 4.000/10.00 A
AC Voltage:	400 mV/4.000/ 40.00/400.0/750 V
Backlight:	Yes
Capacitance:	40.00/400.0 nF 4.000/40.00/400.0/4000 µF
DC Current:	400.0/4000 µA 40.00/400.0 mA 4.000/10.00 A
DC Voltage:	400 mV/4.000/ 40.00/400.0/1000 V
Diode Test:	Yes
Duty Cycle:	0.1% to 99.9%
Frequency:	10Hz to 10MHz
Resistance:	400.0 Ohms 4.000/40.00/400.0 kOhms 4.000/40.00 MOhms
Temperature:	-40°F to 1832°F (-40°C to 1000°C)
