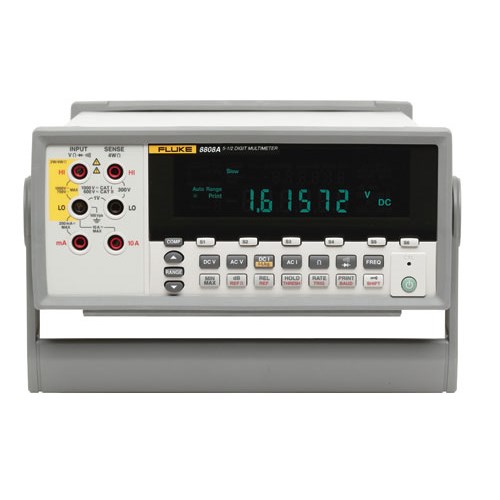

Fluke 8808A 5.5 Digit Multimeter

Price:

Call for pricing

SKU:

8808A

Brand:

Fluke

Weight:

5.00 LBS

Product Description

The Fluke 8808A delivers a wide variety of measurement functions, including volts, Ohms, and amps, plus frequency. For manufacturing test or routine measurements, the 8808A setup keys provide direct access to repetitive measurements. Measure sensitive leakage currents with 100 nA sensitivity using unique low input impedance low current ranges.

Product Features

5.5 Digit Resolution
Dual Display
Measures V DC/AC, I DC/AC, Ω, Freq, Continuity, Diode
Basic V DC accuracy of up to 0.015%
Min, Max, Rel, dB, dBm
2x4 Wire Ohms measurement technique
Dedicated DC leakage current ranges
Six dedicated buttons for fast access to instrument setups
Hi/Lo limit compare for Pass/Fail testing
RS-232 interface

Specifications:

Dimensions:	3.46" x 8.56" x 11.7"
AC Current:	20mA to 10A
AC Voltage:	200mV to 750V
DC Current:	200uA to 10A
DC Voltage:	200mV to 1000V
Diode Test:	Yes
Frequency:	20Hz to 1MHz
Resistance:	200Ω to 100 MΩ
Resolution:	5.5 Digits
Safety:	CAT I 1000V/CAT II 600 V
Warranty:	1 Year
