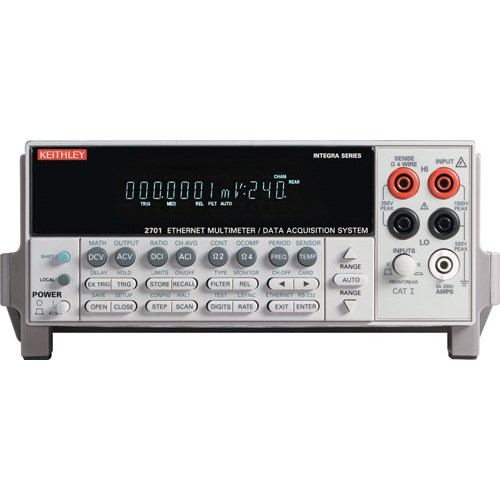

Keithley 2701 Model 2701 DMM, Data Acquisition, Datalogging System w/2 Slots and Ethernet Support

  • Image 1
Price:
$1,940.00
SKU:
2701
Brand:
Weight:
14.00 LBS
Shipping:
Calculated at checkout
Bookmark and Share


Product Description

Product Description
Integra Series system 2701 combines precision measurement, switching, and control in a single, tightly integrated enclosure for either rack-mounted or benchtop applications. This cost-effective, high performance test platform offers an affordable alternative to separate digital multimeters and switch systems, dataloggers/recorders, plug-in card data acquisition equipment, and VXI/PXI systems. The Integra Series plug-in switching and control modules offer unmatched flexibility and testing efficiency for a wide range of industries and applications. System builders can create test solutions with a combination of channel count, cost per channel, and system performance unmatched by any other singlebox measurement system. The input modules provide the flexibility to vary the channel count from 20 to 200 (2-pole), apply a stimulus to the device under test, route signals, control system components, and make precision measurements with up to 14 functions. Robust digital I/O capabilities can be used for triggering, handshaking with other automation equipment, and alarm limit outputs. Scan rates of up to 500 channels/second (up to 3500 readings/second on a single channel) will increase test productivity. Model 2701 offers a 10/100 BaseT Ethernet connection for high speed and long distance communication between a computer and a virtually infinite number of instruments. Any PC with an Ethernet port can connect to a single Model 2701 in a point-to-point configuration, to multiple Model 2701s through a hub, or to multiple Model 2701s distributed on a network.
Product Features
  • Combines functions of DMM, switch system, and datalogger
  • True 6½-digit (22-bit) resolution
  • Choice of 12 switch/control plug-in modules
  • Up to 200 differential input channels (with 300V isolation) for measurement and control
  • Convenient front panel inputs
  • Free LabVIEW™, LabWindows/CVI, Visual Basic, C/C++, and TestPoint™ drivers (IVI style)
  • Ethernet, RS-232 communications capabilities
  • Free ExceLINX™ -1A datalogging software
Specifications:
Application: Production test of electronic products and devices, Accelerated stress testing (AST), Process monitor and control, Device characterization/R&D, Low ohms, multichannel measurements
Includes: LabVIEW, LabWindows/ CVI, Visual Basic, and C/C++ drivers; manual; and Model 1751 Safety Test Leads
Number of Available Modules: 12
Number of Available Slots: 2
Number of Channels: 80
