Conductive Containers Inc. TP9090-I Tacki-Pak™ Handling Tray, Level I, 9 "x 9" x .125"

Conductive Containers Inc. TP9090-I Tacki-Pak™ Handling Tray, Level I, 9 "x 9" x .125"

Price:

Call for pricing

SKU:

TP9090-I

Brand:

Conductive Containers Inc.

Weight:

1.00 LBS

Minimum Purchase:

1 unit(s)

Product Description

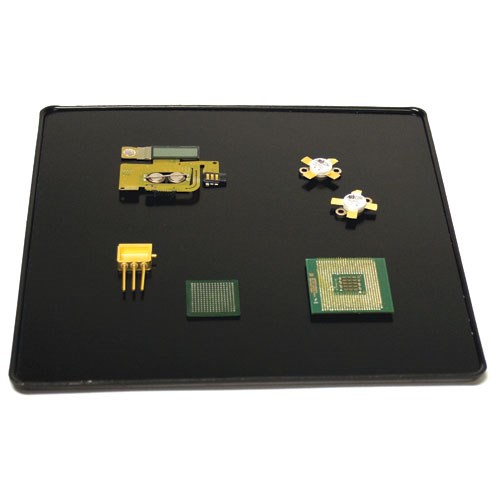

Electronic components and small assemblies are susceptible to ESD and physical damage as they are handled and stored during the manufacturing and testing process. Tacki-Pak™ provides an ESD-Safe, non-adhesive, tacky surface that will limit component movement. No longer will parts slide into each other causing damage. Tacki-Pak™ is a flat, user friendly surface that minimizes residue transfer to the component. It has stable, reusable and cleanable ESD-Safe properties.

Product Features

Non-slip
Tack Level I Rating Range 2.0 - 4.0 (rating is in foot pounds of force)
ESD-Safe
Tray 10³ - 10⁶ ohms
Tacki surface 10⁵ - 10⁹ ohms
Reusable - clean with IPA (wipes) to remove FOD and rejuvenate surface tack level

Specifications:

Depth:	.125"
Length:	9"
Width:	9"
Outside Dimension Depth:	.125"
Outside Dimension Length:	9"
Outside Dimension Width:	9"
Carton Quantity:	10
ESD-Safe:	Yes
Kitting:	Yes
Size:	9" x 9" x .125"
