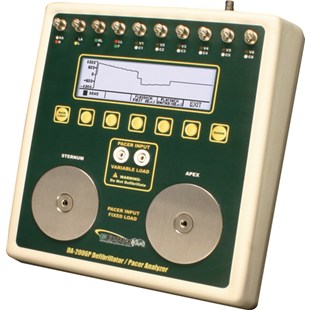

BC Biomedical DA-2006 Series Defibrillator Analyzer

• Tests Bi-Phasic Defibrillators
• Tests AEDs
• Easy-to-use Menu
• Internal Paddle Adapters
• Flash programmable for upgrades
• Printer output
• Battery or line power
• Pacer testing capability (DA-2006P only)

The DA-2006 is a microprocessor-based instrument that is used in the testing of defibrillators. It measures the energy output and provided information about the pulse. It is used on manual, semi-automatic and automatic defibrillators with monophasic or biphasic outputs. The DA-2006 makes viewing and selecting the desiredwaveforms and test data quick and intuitive, with all operational information being available on the 240 by64 pixel graphic display, allowing for easy maneuvering through parameters and scrolling through available options.The DA-2006P model additionally provides a Transcutaneous Pacemaker analysis function whichmeasures and displays pacer pulse information as well as performing Refractory Period, Sensitivity and Immunity testing. All models have a built in 50 ohm human body simulation load as well as 12 lead ECG with arrhythmias and performance waveforms. Additionally, they have a centronics printer port, a serial port, oscilloscope output, high level ECG output, as well as provision for a battery eliminator.
